In the realm of fire safety, ensuring that a building is well-protected against the spread of fire and smoke is paramount.
However, not all fire safety measures or assessments cover the same areas of concern. When it comes to maintaining a solid compartmentation strategy, several key evaluations are necessary, each with its distinct role. Here, we’ll dive into the differences between a Fire Risk Assessment, a Compartment Survey, and a Fire Door Inspection—and why each of them is essential for comprehensive fire safety.
1. Fire Risk Assessment (FRA)
A Fire Risk Assessment is often the starting point for evaluating the fire safety of a building. This assessment is typically mandated by the Regulatory Reform (Fire Safety) Order 2005 in the UK and is a legal requirement for most types of premises. However, it’s important to understand that an FRA provides an overview of fire risks and general safety precautions but may not dive deeply into each individual element of passive fire protection.
Purpose of a Fire Risk Assessment
- Identify potential fire hazards.
- Evaluate the risk level to people within the building.
- Determine the adequacy of existing fire safety measures.
- Recommend actions to mitigate identified risks.
Limitations of a Fire Risk Assessment
An FRA can indicate problem areas in a building’s fire safety but is often limited to highlighting examples of issues rather than conducting exhaustive evaluations of every fire protection element. For instance:
- It might flag areas where compartmentation may be compromised but won’t necessarily cover the full extent of these breaches.
- It can identify the need for fire door inspections but doesn’t delve into individual door performance.
- It highlights general weaknesses in firestopping but won’t include a thorough inspection of all firestopping seals and penetrations.
In short, an FRA gives a broad assessment but lacks the in-depth analysis of each fire safety component that specialists like fire compartment surveyors and fire door inspectors provide.
2. Compartment Survey
While a Fire Risk Assessment might note areas of compromised compartmentation, a Compartment Survey is a much more specialised assessment. Compartmentation is a crucial element of passive fire protection, aiming to limit the spread of fire and smoke to designated areas of a building, thereby containing a fire to its point of origin for as long as possible.
Purpose of a Compartment Survey
- Verify that all fire compartments are intact and compliant with building and fire codes.
- Identify breaches in compartment walls caused by openings, service penetrations, or faulty firestopping.
- Document all compromised areas that require remedial action to restore the compartment’s fire resistance.
Without a thorough Compartment Survey, building managers cannot be confident that each compartment performs as intended.
3. Fire Door Inspection
Fire doors play a critical role in compartmentation by providing barriers that prevent the passage of fire and smoke through doorways. However, for fire doors to be effective, they must meet specific standards and be maintained correctly. A Fire Door Inspection focuses exclusively on the condition and performance of fire doors within the building.
Purpose of a Fire Door Inspection
- Meets the required fire resistance rating for its location.
- Is correctly installed and aligned with the door frame.
- Has compliant hardware, such as closers, seals, and latches, that operate effectively.
- Remains free from damage or defects that could affect its performance during a fire.

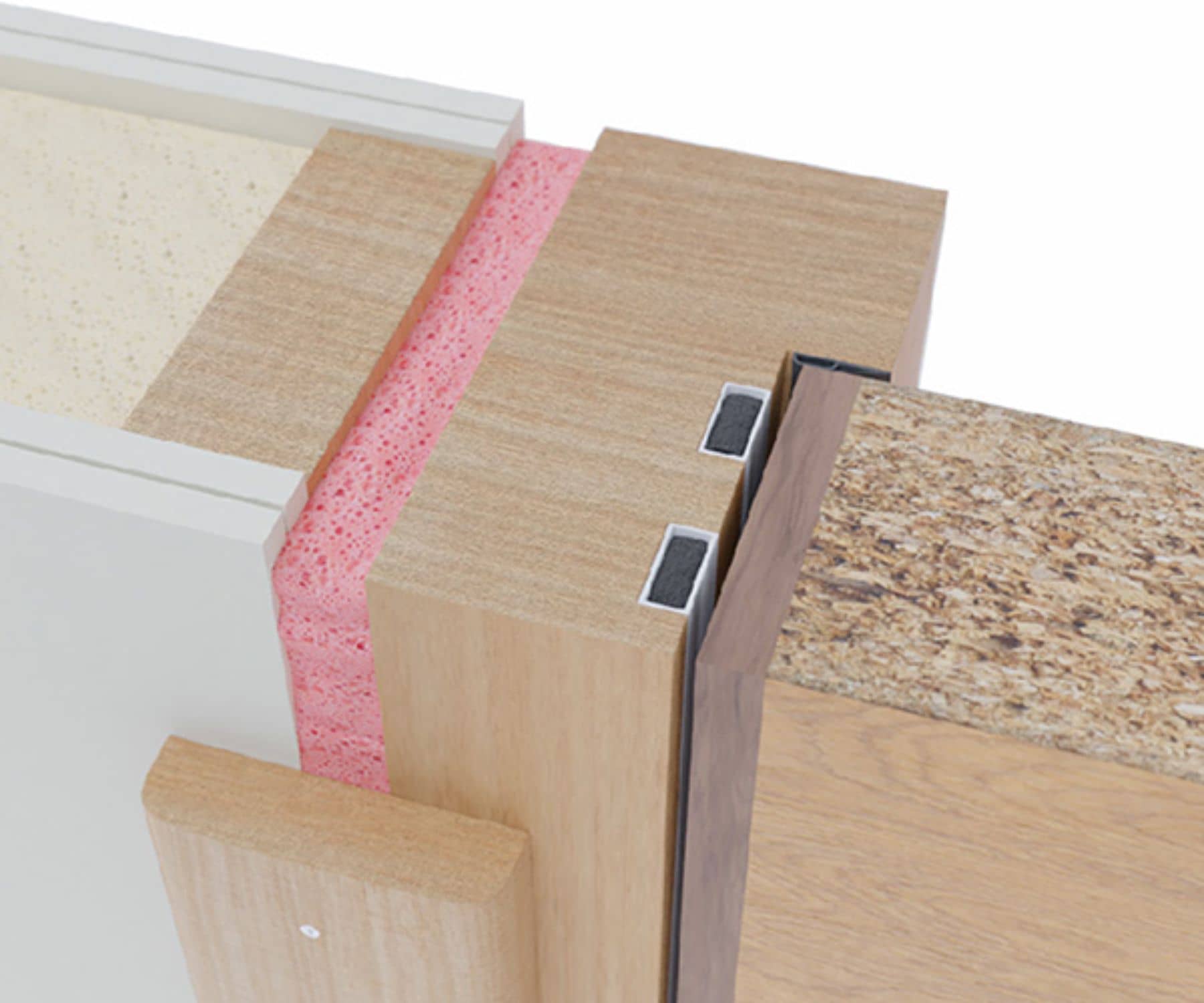

Inspectors review all elements of a fire door, including the door leaf, frame, intumescent seals, glazing, hinges, and signage.
Why Each Assessment Is Essential for Comprehensive Fire Safety
- Fire Risk Assessment – high-level overview, may miss detailed compartmentation or fire door issues.
- Compartment Survey – ensures structural fire barriers are intact, identifying breaches.
- Fire Door Inspection – guarantees fire doors meet performance standards, reducing fire spread.
How Vanguard Can Help
At Vanguard, we specialise in all aspects of passive fire protection, including Compartment Surveys and Fire Door Inspections, as well as installation and maintenance. Contact us at 0333 339 7225 or Info@vanguardfireprotection.co.uk.
